Evolution and Innovation: The Development of Friction Stir Welding Machines (anglais)

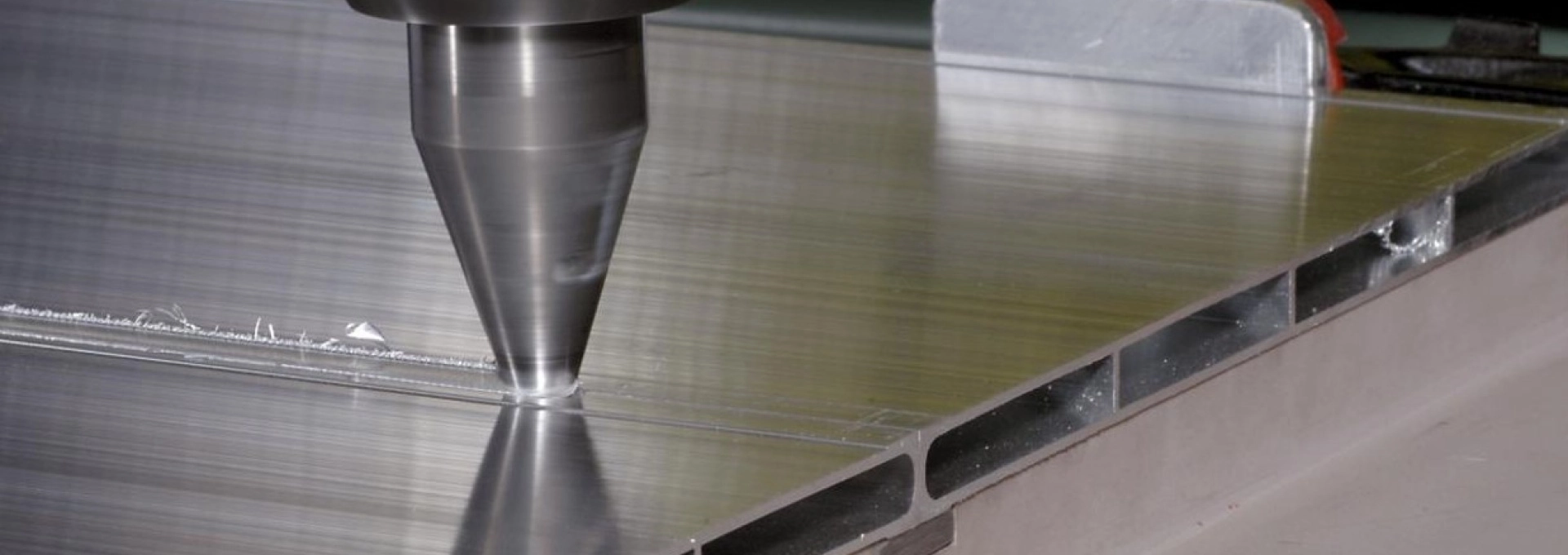

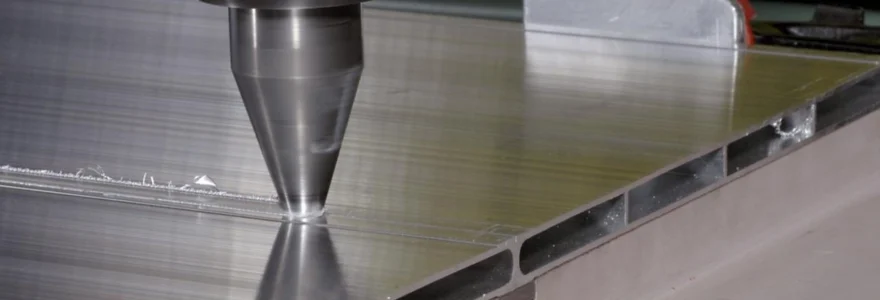

Friction Stir Welding

Friction stir welding (FSW) has revolutionized the joining of metals since its invention in 1991. This solid-state welding process uses a rotating tool to generate frictional heat and plastically deform material at the weld interface, creating high-strength joints without melting the base metals. As FSW technology has advanced over the past three decades, specialized machines have been developed to apply this innovative welding technique across a range of industries and applications. The evolution of FSW equipment has enabled joining of increasingly diverse materials and complex geometries while improving weld quality, process control, and production efficiency. This article examines the key developments in friction stir welding machine design and capabilities that have expanded the industrial adoption of this transformative joining method.

Pioneering Work in Friction Stir Welding Technology

The initial FSW experiments in the early 1990s utilized modified milling machines to generate the rotational and translational motion required for the welding process. These rudimentary setups demonstrated the viability of FSW for joining aluminum alloys but had limitations in terms of force control, processing parameters, and joint configurations. Recognizing the potential of FSW, researchers and equipment manufacturers began developing purpose-built FSW machines tailored to the unique requirements of the process. Early dedicated FSW systems incorporated robust spindles capable of high rotational speeds and axial loads, along with precision control of tool position and plunge depth. Specialized fixturing was designed to rigidly clamp workpieces and react the high forces generated during welding. Data acquisition systems were integrated to monitor and record key process variables like spindle torque, axial force, and tool temperatures.

As FSW transitioned from laboratory experiments to industrial applications in the late 1990s, machine designs evolved to accommodate larger workpieces and enable welding of longer, more complex joint geometries. Gantry-style FSW machines with moving welding heads were developed to join large panels for aerospace and shipbuilding applications. Articulated robotic arms outfitted with FSW end effectors provided flexibility for three-dimensional welding paths. Modular FSW systems were created to allow integration of the welding process into existing production lines. These advancements in machine architecture expanded the range of components that could be friction stir welded and facilitated adoption of FSW in manufacturing environments.

Concurrent with hardware developments, FSW process control software became increasingly sophisticated. Closed-loop force control systems were implemented to maintain consistent plunge depth and weld penetration across variations in material thickness or joint fit-up. Adaptive control algorithms were developed to automatically adjust welding parameters in response to changes in thermal conditions or material properties along the weld seam. Real-time monitoring of weld quality indicators like torque signatures and tool temperatures enabled detection and correction of weld defects during the process. The integration of process modeling and simulation tools with machine control systems allowed optimization of welding parameters and prediction of weld properties.

Key Components of Friction Stir Welding Machines

Modern friction stir welding machines incorporate several critical subsystems that work in concert to produce high-quality welds. The design and capabilities of these key components have a significant impact on overall machine performance and weld characteristics. Understanding the function and evolution of FSW machine elements provides insight into the technological advances that have expanded the applicability of the process.

Tool Shoulder Design for Optimal Heat Generation

The tool shoulder plays a crucial role in friction stir welding by generating frictional heat and constraining plasticized material within the weld zone. Early FSW tools utilized simple flat or concave shoulder geometries. However, research revealed that more complex shoulder profiles could enhance material flow and improve weld quality. Scrolled and featured shoulder designs were developed to direct material flow and increase the contact area between the tool and workpiece. Some advanced shoulder configurations incorporate independent rotation to provide additional control over heat input and material transport. Shoulders with active cooling systems have been implemented to manage thermal conditions in the weld zone, particularly for high-temperature alloys.

Materials selection for FSW tool shoulders has progressed to meet the demands of welding increasingly diverse and challenging alloys. While tool steel sufficed for initial aluminum welding trials, more wear-resistant materials like tungsten carbide and polycrystalline cubic boron nitride (PCBN) were adopted for high-volume production applications. Composite shoulder materials combining a tough substrate with a wear-resistant coating have been developed to optimize tool life and performance. Recent research has explored functionally graded materials and advanced ceramics to further enhance shoulder durability and thermal management capabilities.

Probe Geometry Impact on Material Flow Patterns

The probe or pin portion of the FSW tool is responsible for plasticizing and mixing material at the weld interface. Probe design has a profound effect on material flow patterns and resultant weld microstructure. Initial FSW trials employed cylindrical probes with simple threads or flutes. However, it was soon discovered that more complex geometries could improve material flow and reduce welding forces. Tapered and stepped probe profiles were developed to optimize the ratio of shoulder to probe diameter for different plate thicknesses. Triflute and MX Triflute probe designs with helical features enhanced material transport and reduced welding torque.

Specialized probe geometries have been created for specific welding challenges. Retractable pin tools enable welding of varying thickness materials and eliminate exit holes at weld termination points. Stationary shoulder FSW tools with rotating probes provide improved control over heat input for temperature-sensitive alloys. Modular tool systems with interchangeable probe and shoulder components offer flexibility for welding different material combinations and joint configurations. Computational modeling of material flow around FSW probes has guided the development of novel geometries optimized for specific alloy systems and joint designs.

Robust Clamping Systems Ensuring Precise Joint Alignment

Effective workpiece fixturing is critical for producing high-quality friction stir welds, particularly for long joints or thin materials prone to distortion. Early FSW machines relied on manual clamping systems that were time-consuming to set up and adjust. As the process transitioned to industrial applications, more sophisticated fixturing solutions were developed. Hydraulic and pneumatic clamping systems provide consistent clamping force along the entire weld length. Vacuum tables enable secure fixturing of large panels without obstructing the weld path. Self-aligning clamps compensate for minor variations in part geometry to ensure proper joint alignment.

Advanced fixturing concepts have been implemented to address specific FSW challenges. Backing anvils with integrated cooling channels help manage heat buildup in the weld zone, particularly for high-productivity welding of thick sections. Flexible fixturing systems with quick-change components reduce setup time when welding a variety of part configurations. In-process distortion control systems actively adjust clamping forces to minimize welding-induced deformation. Integration of fixturing design with FSW process modeling allows optimization of clamping strategies to achieve desired weld properties and dimensional accuracy.

FSW Machine ComponentKey AdvancementsImpact on Weld Quality
Tool ShoulderScrolled/featured designs, active coolingImproved material flow, heat management
Tool ProbeComplex geometries, modular designsEnhanced mixing, reduced welding forces
Clamping SystemSelf-aligning clamps, distortion controlPrecise joint alignment, minimal distortion

Advancements in Machine Control Systems

The evolution of friction stir welding machine control systems has been a key factor in expanding process capabilities and improving weld quality consistency. Early FSW machines relied on simple position control of the welding tool, with limited ability to adapt to variations in material properties or joint conditions. Modern FSW control systems incorporate multiple feedback loops and advanced algorithms to optimize the welding process in real-time. Force control has become standard on most FSW machines, allowing maintenance of consistent plunge depth and weld penetration across changing plate thickness or fit-up conditions. Torque control strategies have been implemented to regulate heat input and material flow, particularly for welding heat-sensitive alloys.

Integration of in-process monitoring capabilities has enhanced the ability to detect and correct weld defects during production. Acoustic emission sensors can identify the onset of void formation or lack of penetration, triggering adjustments to welding parameters. Infrared thermography systems provide real-time temperature mapping of the weld zone, enabling precise control of thermal conditions. Torque and force signature analysis allows detection of subtle changes in material flow behavior that may indicate improper mixing or contamination. Machine learning algorithms have been applied to analyze sensor data and automatically optimize welding parameters for specific material combinations and joint geometries.

Human-machine interfaces for FSW systems have evolved to provide operators with comprehensive process information and intuitive control. Graphical displays show real-time plots of key welding parameters along with visual representations of tool position and weld progress. Touchscreen interfaces allow rapid adjustment of welding parameters and easy access to stored welding procedures. Remote monitoring and control capabilities enable expert oversight of FSW operations across multiple production facilities. Integration of FSW machine control with overall factory automation systems facilitates seamless material handling and production scheduling.

Adaptations for Welding Various Materials

As friction stir welding has been applied to an expanding range of materials beyond aluminum alloys, machine designs have been adapted to address the unique challenges of joining diverse metals and alloy systems. These modifications have enabled FSW to be utilized for welding high-strength steels, titanium alloys, magnesium, copper, and dissimilar metal combinations. Specialized machine configurations and tooling solutions have broadened the industrial applications of FSW technology.

Modified Machine Configurations for Aluminum Alloy Joining

While FSW was initially developed for welding aluminum alloys, advancements in machine design have expanded capabilities for joining increasingly challenging aluminum grades and thicknesses. High-power FSW systems with spindle outputs exceeding 100 kW have been developed for welding thick aluminum plates used in marine and aerospace applications. These machines incorporate robust spindles and gearboxes capable of generating the high torques required for plasticizing thick sections. Stiff machine frames and enhanced cooling systems manage the substantial forces and heat generation associated with large-scale aluminum welding.

For thin aluminum sheet welding, machines with precise vertical position control and sensitive force feedback have been implemented. These systems can maintain consistent plunge depth and prevent excessive thinning of the weld zone. Specialized clamping fixtures with integrated cooling channels help manage heat buildup and prevent distortion when welding thin panels. High-speed FSW machines capable of welding speeds exceeding 2 m/min have been developed for automotive applications, allowing FSW to compete with traditional fusion welding processes in high-volume production environments.

Customized Setups for Dissimilar Material Combinations

Friction stir welding of dissimilar metals presents unique challenges due to differences in melting temperatures, flow stresses, and thermal properties between the materials being joined. FSW machines for dissimilar metal welding often incorporate dual-rotation capabilities, allowing independent control of tool rotation speed and direction on each side of the weld. This enables optimization of heat input and material flow for each alloy in the joint. Specialized fixturing systems have been developed to accommodate differences in thermal expansion between dissimilar materials during welding.

Advanced process control strategies have been implemented for dissimilar metal FSW to manage the complex thermal and mechanical interactions at the weld interface. Temperature control systems using multiple thermocouples or infrared sensors allow precise regulation of heat input to each material. Force control algorithms compensate for variations in flow stress between the different alloys. In-process monitoring of torque signatures and tool temperatures provides feedback on mixing behavior and enables detection of intermetallic compound formation in real-time.

Specialized Tooling for High-Temperature Alloy Welding

Friction stir welding of high-temperature alloys like steels and titanium requires specialized tooling materials and cooling strategies to withstand the extreme conditions in the weld zone. FSW machines for these materials often incorporate liquid or gas-cooled spindles to manage heat buildup in the tool. Some systems utilize external cooling nozzles to direct coolant at the tool-workpiece interface. Induction heating systems have been integrated into FSW machines to preheat high-temperature alloys, reducing welding forces and tool wear.

Tool materials for high-temperature FSW include tungsten-based alloys, polycrystalline cubic boron nitride (PCBN), and advanced ceramics like silicon nitride. These materials maintain their strength and wear resistance at the elevated temperatures encountered when welding steels and titanium. Some FSW systems for high-temperature alloys utilize hybrid tools combining different materials for the probe and shoulder to optimize performance. Specialized coatings have been developed to enhance tool durability and reduce adhesion of workpiece material to the tool surface.

Material SystemMachine AdaptationsKey Challenges
Thick AluminumHigh-power spindles, robust framesHeat management, high forces
Dissimilar MetalsDual-rotation capability, advanced controlThermal mismatch, intermetallics
High-Temp AlloysCooled spindles, specialized toolingTool wear, extreme temperatures

Emerging Applications Driving Further FSW Developments

As friction stir welding technology continues to mature, new applications are emerging that push the boundaries of current machine capabilities and drive further innovation in FSW equipment design. The automotive industry's increasing use of multi-material structures to reduce vehicle weight has created demand for FSW systems capable of joining dissimilar aluminum alloys and aluminum to steel. This has spurred development of machines with enhanced process control and in-situ monitoring to manage the complex thermal and mechanical interactions in these joints. Robotic FSW systems with force-controlled end effectors have been created to enable three-dimensional welding of automotive space frame components and complex sheet metal assemblies.

In the aerospace sector, the trend towards larger, integrated structures has necessitated FSW machines capable of welding very thick sections and handling oversized components. Gantry-style systems with multiple welding heads have been implemented for simultaneous welding of long joints in aircraft fuselage panels. Portable FSW machines have been developed for in-situ repair of aircraft structures, incorporating compact, lightweight designs with self-reacting tools to eliminate the need for heavy backing anvils. The increasing use of carbon fiber reinforced polymers (CFRPs) in aerospace has led to research on FSW machines for joining thermoplastic composites, requiring precise temperature control and specialized tooling to avoid fiber damage.

The growing adoption of additive manufacturing has created opportunities for hybrid manufacturing systems that combine FSW with other processes. FSW machines have been integrated with CNC milling centers to enable in-process repair and modification of additively manufactured components. Some additive systems utilize FSW as a complementary joining method to overcome size limitations of 3D printing envelope. Research is underway on FSW machines capable of welding functionally graded materials produced by additive manufacturing, requiring advanced control strategies to accommodate spatial variations in material properties. As these emerging applications continue to evolve, they will undoubtedly spur further advancements in FSW machine design and capabilities, expanding the industrial potential of this innovative joining technology.
